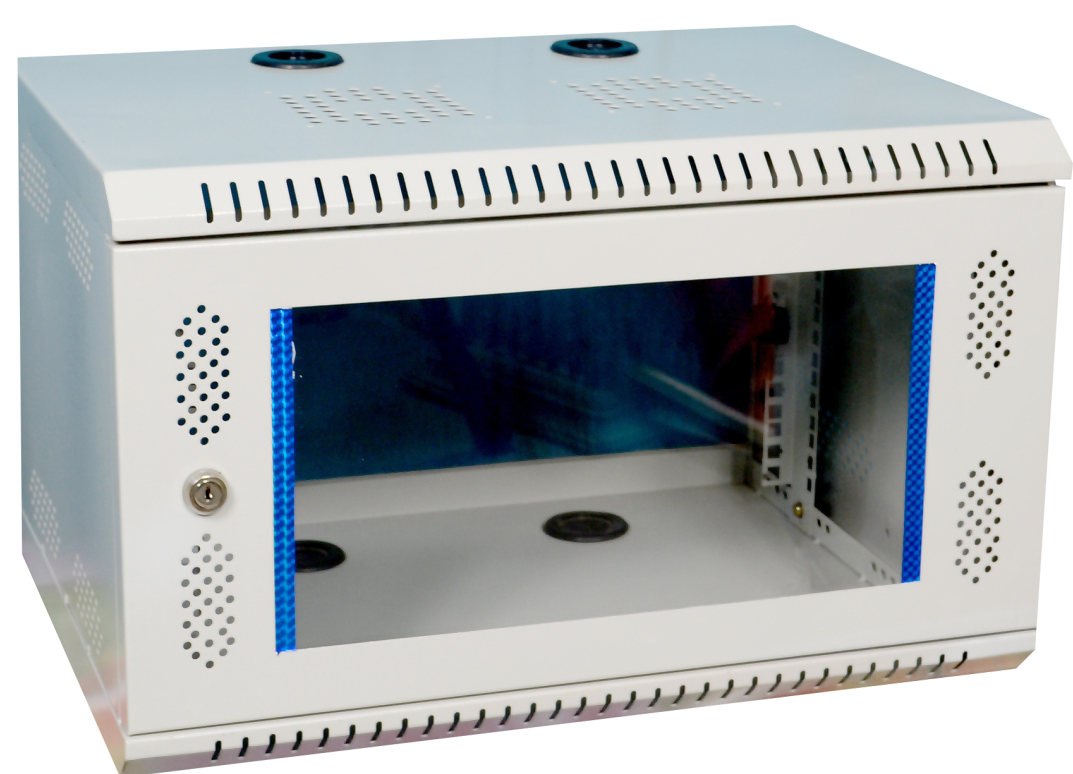

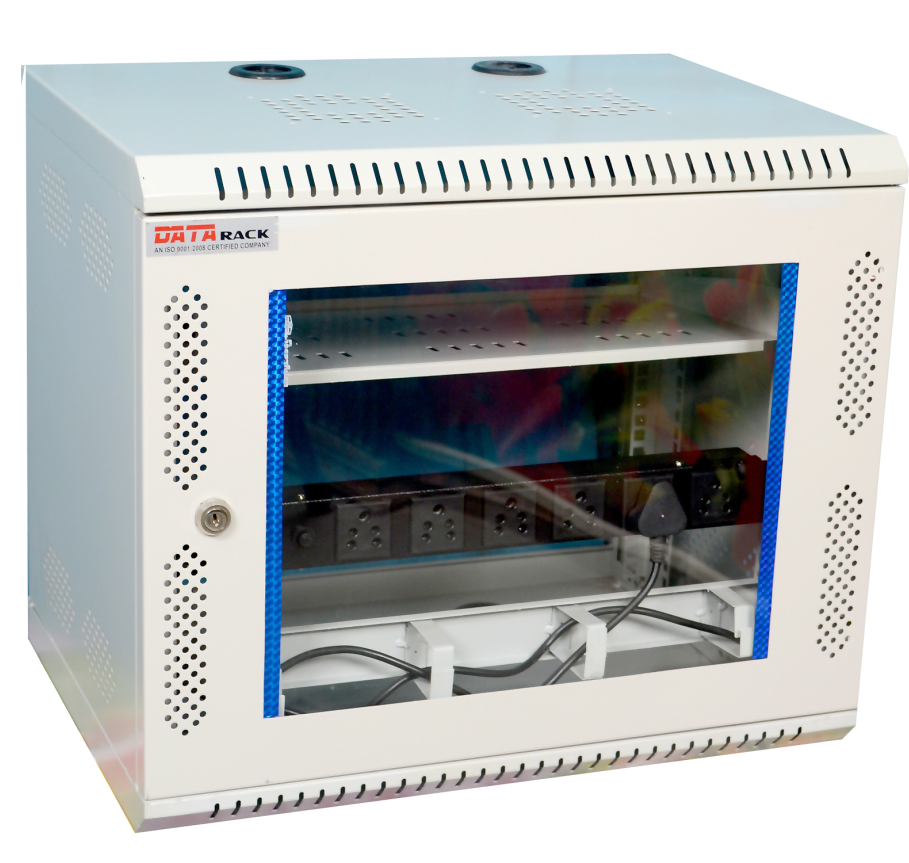

Wall Mount SS/DS Series
Features
- ISO Standards
- Adjustable 19" equipment mounting verticals provides the better mounting flexibility, and maximizes the usable mounting space.
- Depth adjustable mounting slots.
- Top and bottom Panel with ventilation and cable entry facility.
- Provision to mount the cooling fans on the top panel.
- Wall Mounting
- Powder coated .
Product Summary
DATA RACK Floor Stand Steel Series Racks designed for, Servers, Networking, Data Centers, Audio Video, Telecom and Lab applications. Racks are fabricated out of CRCA steel welded and Powder coated with highest quality standards.
Configuration will be for standard racks are welded frame with 4 pillars of 7 folded profile welded to top and bottom panel. 4 folded profile depth rails to additionally support the rack. Removable side panels partially vented for better air circulation. Vented top cover with fan mounting provision, Front Glass or perforated Metal door with lock and key and back Vented or perforated metal door with lock and key. Free standing on floor with 4 No. castors wheels, 2 No. with breaks and 2 no without breaks. Levelers or Plinth can be provided on request.
Racks are available from 17U to 42U Variants with 600mm/800mm/1000mm/1200mm deep configuration and 600 / 800 and 1000 width configurations. We can also undertake customized requirements
Technical Data
| Rack Standard | ISO |
| Construction | Welded or CKD (knockdown) |
| Front Door | Lockable Double Glass Door |
| Basic Frame | Steel |
| Equipment Mounting | Direct M6 Tap |
| Mounting Angle | 19" Mounting angle made of formed steel |
| Standard Finish | Powder Coated |
| Top and Bottom Cover | Fixed to the Frame, Vented and Cable entry/exit cut outs frWelded to Frame, Vented and Cable entry exit cut outs |
| Standard Color | Grey & Off White or Black |
| Static Load | 40 kgs |
Part Code & Dimensions
| Part Code | Total Height In mm(H) | Usable Height (H) | Total Width In mm (W) | Usable Width | Total Depth In mm(D) | Usable Depth (D) |
|---|---|---|---|---|---|---|
| DR-WMSS-04 | 245 | 4U | 550 | 19'' | 400/500/600 | 345 |
| DR-WMSS-06 | 325 | 6U | 550 | 19'' | 400/500/600 | 345 |
| DR-WMSS-09 | 465 | 9U | 550 | 19'' | 400/500/600 | 345 |
| DR-WMSS-12 | 590 | 12U | 550 | 19'' | 400/500/600 | 345 |
| DR-WMSS-15 | 730 | 15U | 550 | 19'' | 400/500/600 | 345 |
1U = 44.45mm
Data Racks Wall Mount Series Available In Single Section Or Double Section Racks
