Features
- ISO Standards
- Adjustable 19" equipment mounting verticals provides the better
mounting flexibility, and maximizes the usable mounting space.
- Depth adjustable mounting slots.
- Top and bottom Panel with ventilation and cable entry facility.
- Provision to mount the cooling fans on the top panel.
- Powder coated .
- Grounding and Bonding Options.
Product Summary

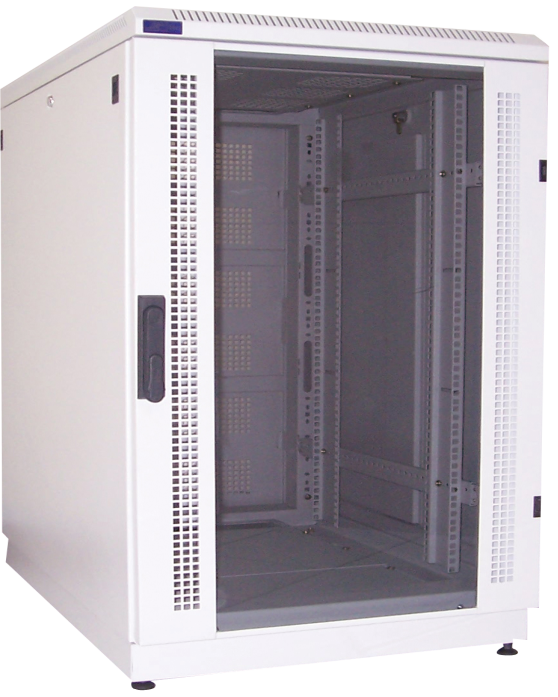

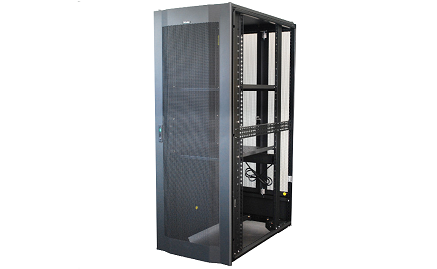

DATA RACK Aluminium Series is a world class
Cabinet System esthetically appealing designed for
Networks Servers, Data Centers, General
Electronics, Telecom and Lab Applications.
It has been designed and engineered specifically to
withstand loads up to 550 kgs and allows for easy
and rapid assembling and integrating at site.
They come with four heavy-duty Aluminium vertical
profiles that lend solid support to two welded Steel
frames at both the top and base ends.
The DATA RACK Aluminium Series Rack allows for
easy mobility and integration
Technical Data
| Rack Standard |
ISO |
| Construction |
CKD (knockdown) |
| Front Door |
Lockable Toughended Glass Door / Perforeted |
| Basic Frame |
Aluminium Extrusion Vertical Profile |
| Equipment Mounting |
Direct M6 Tap Powder Coated |
| Mounting Angle | 19" Mounting angle made of formed steel |
| Standard Finish | Powder Coated |
| Top and Bottom Cover | Fixed to the Frame, Vented and Cable entry/exit cut outs from Top & Bottom Panel |
| Standard Mounting Option | Castor wheels (Front 2 wheels with Break and rear without break) Or levelers |
| Standard Color | Grey & Off White or Black |
| Static Load | 750 kgs with weels 1000 kgs Levelers or Plinth |
Part Code & Dimensions
| Part Code |
Total Height In mm(H) |
Usable Height (H) |
Total Width In mm (W) |
Usable Width |
Total Depth In mm(D) |
Usable Depth (D) |
| DR-AS-6027-06 |
1483 |
27U |
600 |
19'' |
600/800/1000 |
525/725/925 |
| DR-AS-6032-06 |
1690 |
32U |
600 |
19'' |
600/800/1000 |
525/725/925 |
| DR-AS-6036-06 |
1810 |
36U |
600 |
19'' |
600/800/1000 |
525/725/925 |
| DR-AS-6042-06 |
2100 |
36U |
600 |
19'' |
600/800/1000 |
525/725/925 |
Available Size in Aluminium Series
| Heights |
27U, 32U, 42U |
| Width |
600mm, 800mm , 1000mm |
| Depth |
600mm , 800mm , 1000mm ,1000mm |
